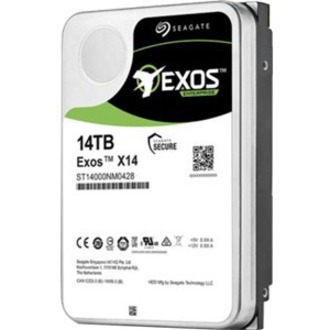

Seagate manufactures hard drives that specifically address the needs of the hyperscale storage market. As the flagship of the Seagate® X class, the Exos™ X14 and Exos X14z enterprise hard drives are the highest-capacity hard drives in the fleet.
Maximum Storage Capacity for Highest Rack Space Efficiency
- 14TB per drive for 40% more petabytes per rack
- Industry's lowest power and weight for optimum data center TCO
- Highest 14TB hard drive performance with enhanced caching, making it perfect for big data applications
- Hyperscale SATA model tuned for large data transfers
- PowerBalance™ feature optimizes IOPS/Watt
- Helium sealed-drive design with no porosity and uniform density
- Superior material and weld-width design for a more robust, hermetically sealed-drive enclosure that protects from helium leaks
- Digital environmental sensors for measuring internal pressure, helping to ensure high reliability, performance, and quality
- Latest hermetic interconnect technology supporting higher data rate heads and higher pin counts for extreme thermal conditions
- Proven enterprise-class reliability backed by 2.5M-hr MTBF rating
- General Information
- Manufacturer
- Seagate Technology
- Manufacturer Website Address
- http://www.seagate.com
- Brand Name
- Seagate
- Product Line
- Exos
- Product Series
- X14
- Product Type
- Hard Drive
- Technical Information
- Storage Capacity
- 14 TB
- Disk Format
- 512e/4Kn
- Drive Performance
- Spindle Speed (rpm)
- 7200
- Buffer
- 256 MB
- Network & Communication
- Wireless LAN
- No
- Interfaces/Ports
- Drive Interface
- SAS
- Drive Interface Standard
- 12Gb/s SAS
- Power Description
- Operating Power Consumption
- 10.20 W
- Physical Characteristics
- Drive Type
- Internal
- Form Factor
- 3.5"
- Height
- 1"
- Width
- 4"
- Depth
- 5.8"
- Weight (Approximate)
- 1.52 lb
- Miscellaneous
- Device Supported
- Storage System
- Server
