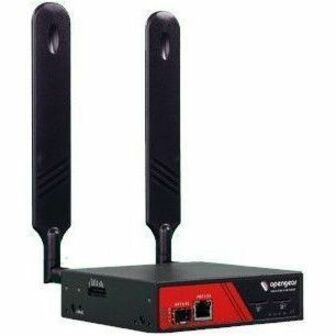

For small IT deployments at edge locations, the Resilience Gateway provides secure remote access to your critical devices via Smart Out-of-Band management. An embedded, global 4G-LTE cellular modem offers an alternate path when the primary link is unavailable.
Connect devices directly to this small form-factor console server via 8 serial and 4 USB ports, providing always-on access to your remote networking equipment. Every model includes 4GB internal memory. Options include a 4-port GbE switch and models without the cellular modem.
Part of the Opengear Network Resilience Platform, the ACM7000 Resilience Gateway with Lighthouse management software and Failover to Cellular™ is used at small Retail locations, Bank branches/ATMs, regional offices, and at many other remote locations where business continuity is critical.
- Appliance now ships with one C14 power cable standard
- General Information
- Manufacturer
- Opengear
- Manufacturer Website Address
- http://www.opengear.com
- Brand Name
- Opengear
- Product Series
- ACM7000
- Product Type
- Infrastructure Management Equipment
- Technical Information
- Data Link Protocols
- HTTPS
- LLDP
- Interfaces/Ports
- Total Number of Network Ports
- 2
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- 12 V DC
- Input Voltage Range
- 110 V AC - 240 V AC
- Physical Characteristics
- Height
- 1.4"
- Width
- 5.1"
- Depth
- 4.7"
- Weight (Approximate)
- 1.30 lb
- Miscellaneous
- Additional Information
4 serial Cisco Straight pinout, ext power, GbE Ethernet or fiber SFP & 4 port GbE switch, 4G LTE, Global Power Supply
Models & Connectors:
- All serial ports are RJ45 RS-232 (50 to 230,400bps, Cisco pinout)
- 2 x RJ45 10/100/1000 Ethernet ports, primary and failover
- 4 x USB 2.0 console port
- 2 x TTL level Digital I/O ports (DIO) 5V DC max @ 20mA (supports external water /smoke / motion dry contact sensors)
- 2 x High Voltage Digital Outputs (HVDO) 5-30V DC@ 100mA (drives relays, alarms, etc.)
- 4 x RS-232 serial ports
Environmental:
- Humidity: 5% to 90%
- Ambient operating temperature: -25°C to 60°C (-13°F to 140°F)
- Non-operating storage temp: -40°C to 75°C (-40°F to 167°F)
Memory & CPU:
- 800 MHz Armada 370 ARMv7 SoC (Marvell 88F6W11)
- 256MB DDR3 SDRAM, 32MB Embedded Flash and 4GB Internal NAND Flash
Operating System:
Linux with source code access and Custom Development Kit (CDK)
Security & Authentication:
IPsec & OpenVPN, SSL tunnels, Secure Shell (SSH V2), TACACS+, Kerberos, RADIUS and LDAP authentication, PAP/CHAP authentication (dial up), Dial back support, Local authentication, System event syslog, Authenticated NTP
Gateway Router:
Stateful firewall, DHCP server, DDNS, Port forwarding, IP filtering with access control lists
Remote Management
HTTPS & SSH console, Nagios NSCA & NRPE, SNMP, TFTP & FTP server, Password access control, IP service port control, AJAX web terminal, Auto Response, RESTful APIs
Cellular Specifications for ACM7000-L:
- SIM Slot: Dual Push Click 2FF SIM slots
- Modem Device: These models utilize the Sierra Wireless EM7565. This a global cellular module ceritfied CE, FCC, GCF, IC, JRF/JPA, NCC, PTCRB
- Connectors: 2 x SMA connectors for cellular with diversity and 1 x SMA connector for GPS
- Air Interface: LTE-A Pro (LTE-LAA), HSPA+
https://opengear.com/products/acm7000-resilience-gateway
- Application/Usage
- Remote Management
- Remote Monitoring
- TCO Certified
- Yes
