- General Information
- Manufacturer
- Opengear
- Manufacturer Website Address
- http://www.opengear.com
- Brand Name
- Opengear
- Product Series
- ACM7000
- Product Type
- Infrastructure Management Equipment

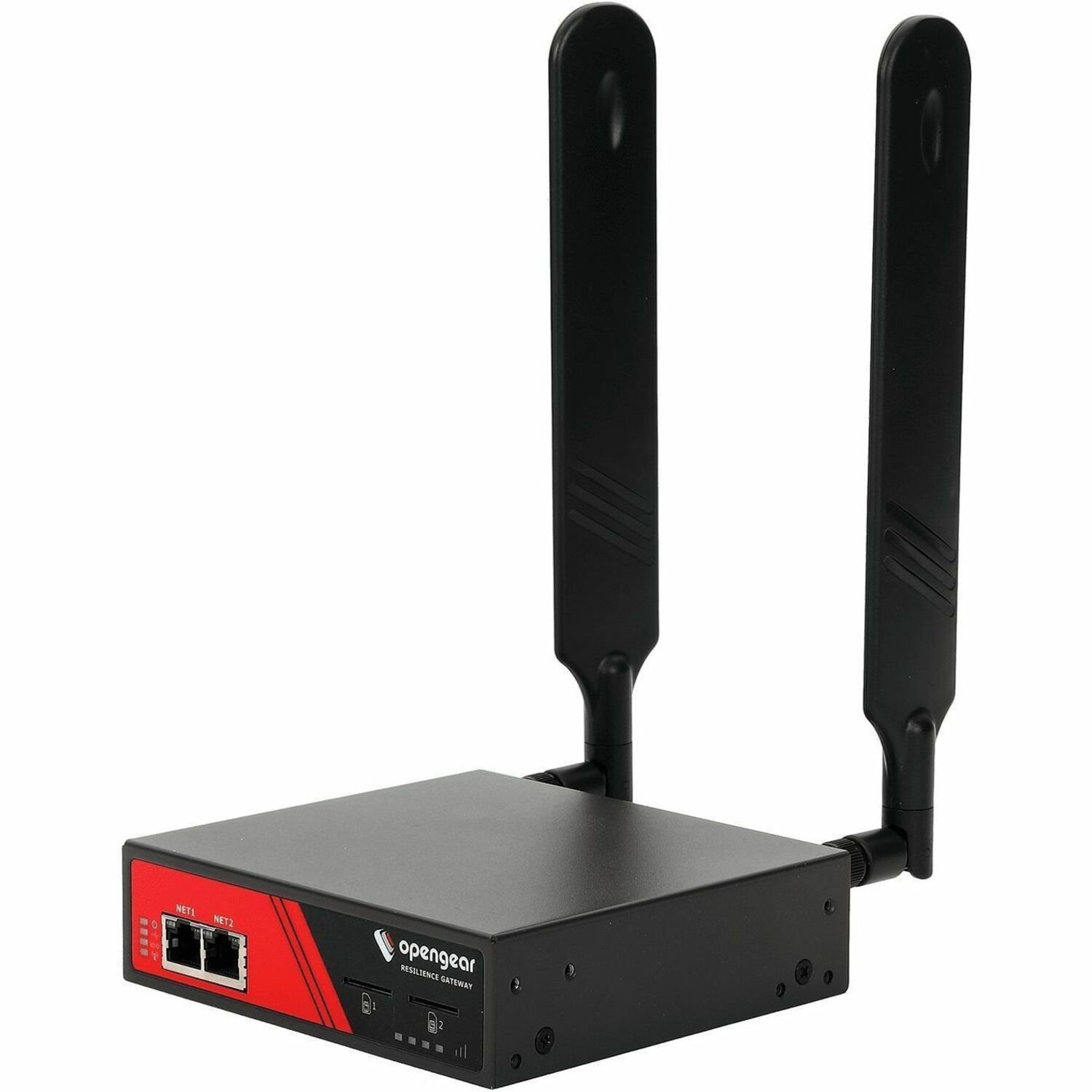

For small IT deployments at edge locations, the Resilience Gateway provides secure remote access to your critical devices via Smart Out-of-Band management. An embedded, global 4G-LTE cellular modem offers an alternate path when the primary link is unavailable.
Connect devices directly to this small form-factor console server via 8 serial and 4 USB ports, providing always-on access to your remote networking equipment. Every model includes 4GB internal memory. Options include a 4-port GbE switch and models without the cellular modem.
Part of the Opengear Network Resilience Platform, the ACM7000 Resilience Gateway with Lighthouse management software and Failover to Cellular™ is used at small Retail locations, Bank branches/ATMs, regional offices, and at many other remote locations where business continuity is critical.
- Appliance now ships with one C14 power cable standard
- Technical Information
- Data Link Protocols
- HTTPS
- LLDP
- Interfaces/Ports
- Total Number of Network Ports
- 2
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- 12 V DC
- Input Voltage Range
- 110 V AC - 240 V AC
- Physical Characteristics
- Height
- 1.4"
- Width
- 5.1"
- Depth
- 4.7"
- Weight (Approximate)
- 1.30 lb
- Miscellaneous
- Additional Information
4 serial Cisco Straight pinout, ext power, 2 GbE Ethernet, 4 USB console ports, 2 DIO and 2 output ports, Global Power Supply
Models & Connectors:
- All serial ports are RJ45 RS-232 (50 to 230,400bps, Cisco pinout)
- 2 x RJ45 10/100/1000 Ethernet ports, primary and failover
- 4 x USB 2.0 console port
- 2 x TTL level Digital I/O ports (DIO) 5V DC max @ 20mA (supports external water /smoke / motion dry contact sensors)
- 2 x High Voltage Digital Outputs (HVDO) 5-30V DC@ 100mA (drives relays, alarms, etc.)
- 4 x RS-232 serial ports
Environmental:
- Humidity: 5% to 90%
- Ambient operating temperature: -25°C to 60°C (-13°F to 140°F)
- Non-operating storage temp: -40°C to 75°C (-40°F to 167°F)
Memory & CPU:
- 800 MHz Armada 370 ARMv7 SoC (Marvell 88F6W11)
- 256MB DDR3 SDRAM, 32MB Embedded Flash and 4GB Internal NAND Flash
Operating System
Linux with source code access and Custom Development Kit (CDK)
Security & Authentication
IPsec & OpenVPN, SSL tunnels, Secure Shell (SSH V2), TACACS+, Kerberos, RADIUS and LDAP authentication, PAP/CHAP authentication (dial up), Dial back support, Local authentication, System event syslog, Authenticated NTP
Gateway Router
Stateful firewall, DHCP server, DDNS, Port forwarding, IP filtering with access control lists
Remote Management
HTTPS & SSH console, Nagios NSCA & NRPE, SNMP, TFTP & FTP server, Password access control, IP service port control, AJAX web terminal, Auto Response, RESTful APIs
- Application/Usage
- Remote Management
- Remote Monitoring
- TCO Certified
- Yes
