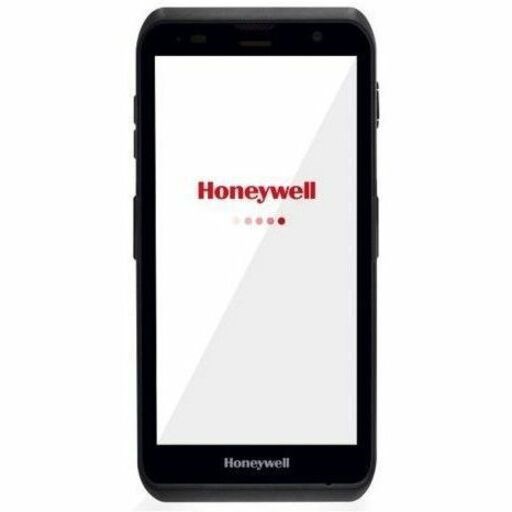

Honeywell ScanPal EDA52 Handheld Terminal

  • Part: 1193309
$1,599.00

Availability

In Stock

The Honeywell ScanPal™ EDA52 is an enterprise-class mobile computer that provides reliable and secure connectivity between frontline workers and back-end business systems. It is designed for use in retail, transportation & logistics, manufacturing, healthcare, and public service applications

The ScanPal EDA52 is Honeywell's next generation ScanPal series mobile computer equipped with the latest Qualcomm Snapdragon octa-core 2.0GHz processor and robust wireless connectivity through NFC, Wi-Fi 5, Bluetooth 5.1 and 4G LTE communication

A prominent 5.5-inch Gorilla Glass touch screen interface and ergonomic industrial design help to greatly improve user comfort and experience. Its lightweight and slim design means that users can easily operate the device with one hand, carry it in pockets, and stay comfortable all day.

The 13-megapixel rear camera allows users to capture high-resolution images for quality image documentation while the 5-megapixel front camera allows users to engage in video communication

The EDA52 incorporates the all-new and powerful Honeywell S0703 scan engine which enables fast reading even of damaged or incomplete barcodes.

Outfitted with a rugged housing and IP67 rated sealing, the EDA52 can operate under rough usage and demanding environmental conditions. A 4500mAh battery allows for prolonged and uninterrupted use between each charge. The battery is also easily removable and supports quick charge 3.0

The EDA52 (WWAN version) supports one nano SIM and one eSIM simultaneously. An eSIM enables simple management of subscriptions to different mobile network carriers, thereby allowing easy switch between carriers without the need to manage multiple physical SIM cards

The EDA52 is built on Android 11 and can be upgraded to Android 13* minimizing maintenance issues and ensuring long-term feature support. It is validated under AER (Android Enterprise Recommended)**, a Google-led initiative that helps businesses confidently select, deploy, and manage Android devices and services best suited to their needs

The EDA52 can be easily paired with Honeywell's IH25/IH40 RFID reader. Users can quickly capture large volume of RFID information in applications such as retail and warehouse inventory tracking.

For existing Honeywell mobile computer users, the EDA52 can be backward-compatible with existing Honeywell accessories, the ScanPal EDA51 single charging dock by adding an adapter cup. This will further help our existing customers reduce their total cost of ownership (TCO).

  • General Information
    • Manufacturer
    • Honeywell International, Inc
    • Manufacturer Website Address
    • http://www.honeywell.com
    • Brand Name
    • Honeywell
    • Product Line
    • ScanPal
    • Product Type
    • Handheld Terminal
  • Warranty
    • Limited Warranty
    • 1 Year

  • Technical Information
    • Connectivity Technology
    • Wireless
    • Scanning Capability
    • 1D
    • 2D
    • Scan Engine Model
    • S0703
    • Image Sensor Type
    • Imager
    • Google Mobile Services (GMS)
    • Yes
    • Sensor Type
    • Accelerometer
    • Light Sensor
    • Proximity
    • Features
    • Gorilla Glass 5
    • Lightweight
    • Corning Gorilla Glass
    • Drop Resistant
    • Drop Specification
      • Multiple 1.3m (4.3ft) per MIL-STD 810G drops to concrete at room temperature
      • Multiple 1.5m (5ft) per MIL-STD 810G drops with rubber boot concrete at room temperature
  • Processor & Chipset
    • Processor Manufacturer
    • Qualcomm
    • Processor Type
    • Snapdragon
    • Processor Model
    • SM6115
    • Processor Core
    • Octa-core (8 Core)
    • Processor Speed
    • 2 GHz
  • Memory
    • Standard Memory
    • 3 GB
    • Flash Memory
    • 32 GB
    • Memory Card Supported
    • microSD
    • microSDHC
    • microSDXC
  • Display & Graphics
    • Screen Size
    • 5.5"
    • Screen Mode
    • HD
    • Screen Resolution
    • 1440 x 720
    • Display Screen Type
    • LED
  • Touchscreen Information
    • Touchscreen
    • Yes
    • Multi-touch Screen
    • Yes
  • Network & Communication
    • Wireless LAN
    • Yes
    • Wireless LAN Standard
    • IEEE 802.11 a/b/g/n/ac
    • Bluetooth
    • Yes
    • Bluetooth Standard
    • Bluetooth 5.1
    • Near Field Communication (NFC)
    • Yes
    • GPS
    • Yes
    • Global Navigation Satellite System (GNSS) Supported
    • BeiDou/Galileo/GLONASS
  • Interfaces/Ports
    • USB
    • Yes
    • USB Type-C
    • Yes
  • Camera
    • Front Camera
    • Yes
    • Front Camera Resolution
    • 5 Megapixel
    • Rear Camera
    • Yes
    • Rear Camera Resolution
    • 13 Megapixel
  • Software
    • Operating System
    • Android 11
    • Upgradable Operating System
    • Android 13
  • Power Description
    • Power Source
    • Battery
  • Battery Information
    • Battery Capacity
    • 4500 mAh
    • Battery Chemistry
    • Lithium Ion (Li-Ion)
    • Battery Included
    • Yes
    • Maximum Battery Run Time
    • 12 Hour
    • Battery Voltage
    • 3.80 V
    • Maximum Battery Recharge Time
    • 3.50 Hour
    • Removable Battery
    • Yes
  • Environmental Conditions
    • Operating Temperature
    • -4°F (-20°C) to 122°F (50°C)
    • Storage Temperature
    • -22°F (-30°C) to 158°F (70°C)
    • Humidity (Non-condensing)
    • 5% to 90%
  • Physical Characteristics
    • Rugged
    • Yes
    • Height
    • 6.3"
    • Width
    • 3"
    • Depth
    • 0.6"
    • Weight (Approximate)
    • 9.10 oz
  • Miscellaneous
    • Package Contents
      • EDA52 Handheld Terminal
      • Battery
    • Application/Usage
    • Retail
    • Transportation
    • Logistics
    • Manufacturing
    • Healthcare
    • Warehouse
    • Inventory Management
    • Ingress Protection (IP) Rating
    • IP67
