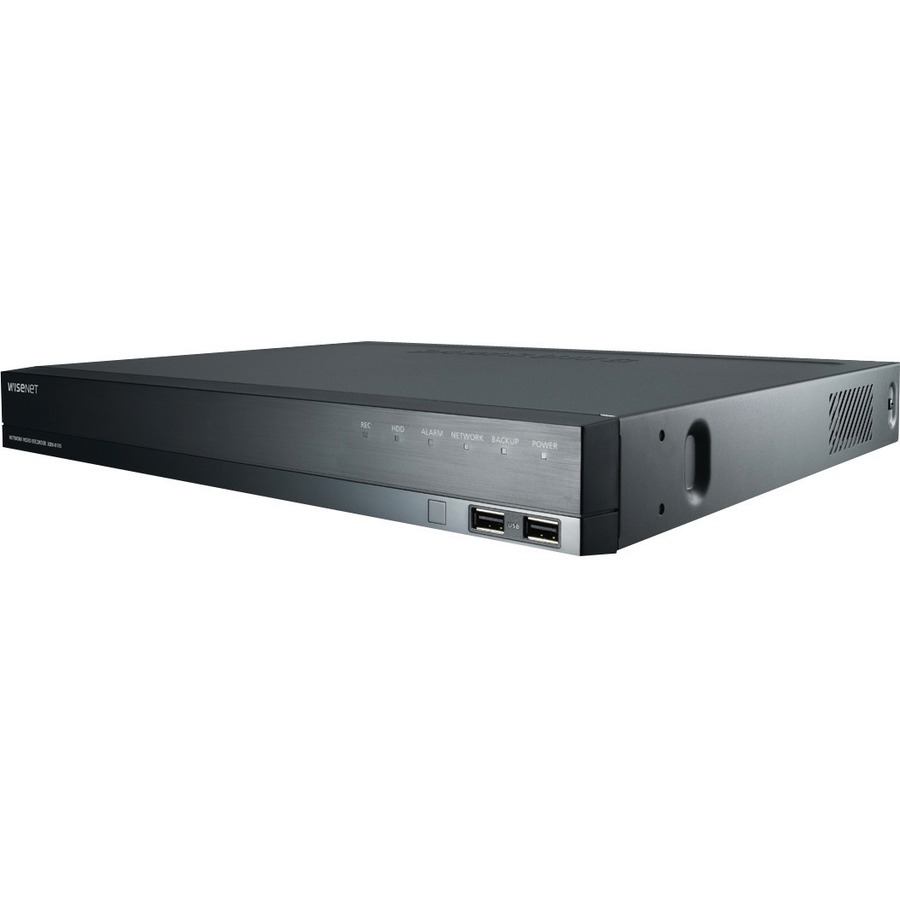

Hanwha's XRN-820 is an 8K NVR (Intel-based), supporting 8 channels with 8 PoE/PoE+ ports (PoE Budget 100W), H265,H264, MJPEG compression support. Supports up to 2 fixed internal SATA HDDs (6TB max per HDD), ARB (Automatic Recovery Backup), 100 Mbps recording / up to 32 Mbps playback, Dual stream recording, WiseStream technology, HDMI/VGA dual display, maximum resolution of 32MP recording/display and fisheye dewarping on web and CMS, web UI 2.0 (plugin-free), AI search (Wisenet AI cameras only), QR Code for mobile app.
- General Information
- Manufacturer
- Hanwha Group
- Manufacturer Website Address
- http://www.hanwha.com
- Brand Name
- Wisenet
- Product Type
- Video Surveillance Station
- Technical Information
- Total Number of Channels
- 8
- Connectivity Technology
- Wired
- Recording Formats
- 8K
- HD Recording
- Yes
- System Components
- Network Video Recorder
- Storage
- Hard Drive Capacity
- 6 TB
- Video
- Video Formats
- H.264
- H.265
- Motion JPEG
- Maximum Resolution
- 32MP
- Maximum Frame Rate
- 480 fps
- Network & Communication
- Ethernet
- Yes
- Remote Management
- Yes
- Interfaces/Ports
- USB
- Yes
- Total Number of Audio In Ports
- 1
- Total Number of Audio Out Ports
- 1
- Number of VGA Out
- 1
- HDMI
- Yes
- Power Description
- Power Consumption
- 160 W
- Physical Characteristics
- Height
- 2"
- Width
- 14.6"
- Depth
- 12.8"
- Weight (Approximate)
- 5.95 lb
