- General Information
- Manufacturer
- Fluke Networks
- Manufacturer Website Address
- http://www.flukenetworks.com
- Brand Name
- Fluke
- Product Type
- Clamp Meter

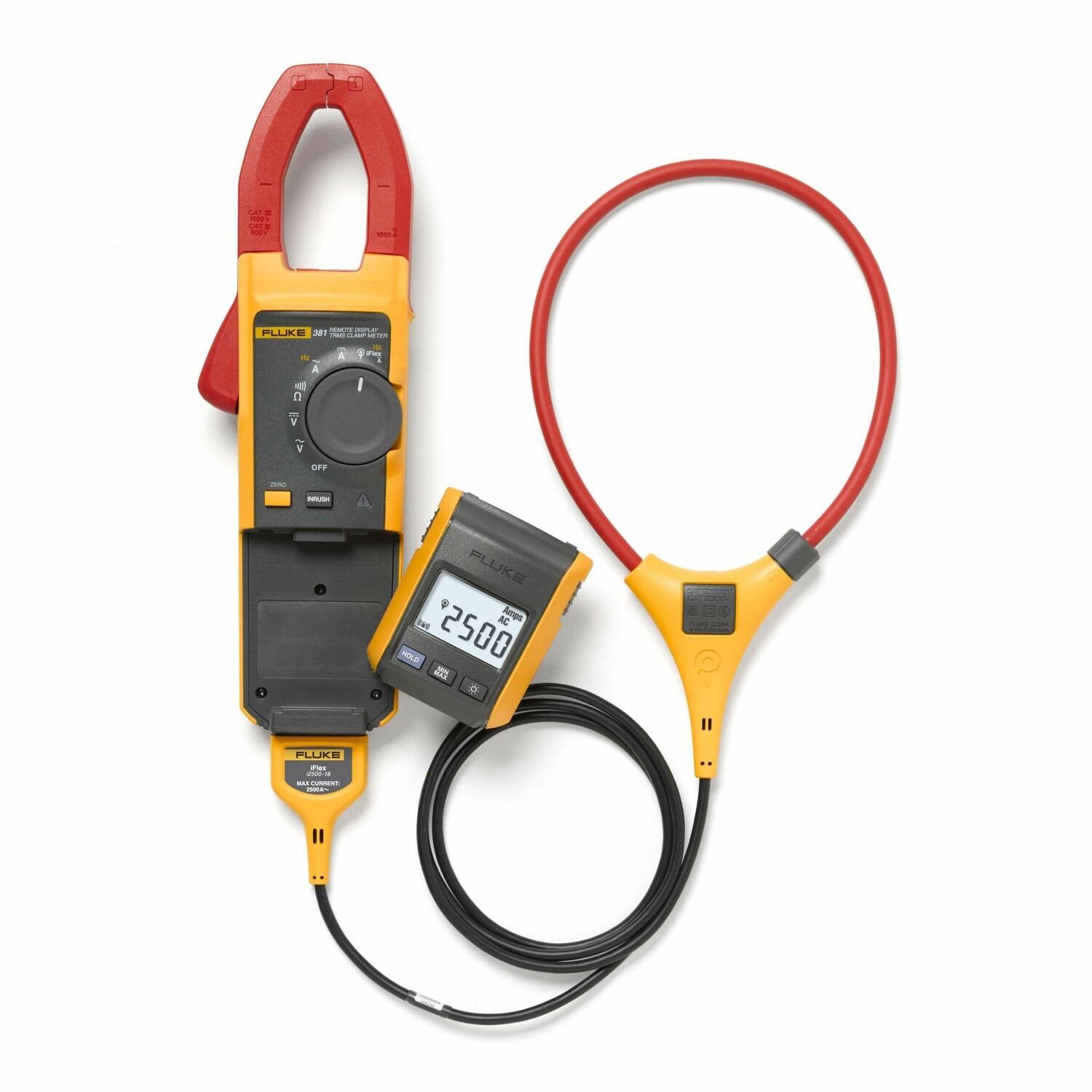

Product overview: Fluke 381 Remote Display True RMS AC/DC Clamp Meter with iFlex® What once took two people, now takes one
Now one technician can do jobs that would otherwise require two people. Clamp the Fluke 381 around a conductor, remove the display and walk across the room to operate controls or remove protective equipment, all while watching real-time readings.
The iFlex® Flexible Current Probe (included) expands the measurement range to 2500 A AC while providing increased display flexibility. With a cord that runs 6 feet, you can finally measure those tight spaces, awkward sized conductors and disorganized wires.
Other key features
- Integrated low pass filter and state-of-the-art signal processing allows for use in noisy electrical environments while providing stable readings
- Proprietary inrush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it
- Ergonomic design fits in your hand and can be used while wearing protective equipment
- Radio transmitter automatically sets the correct measurement range so you do not need to change the switch positions while taking a measurement
- Three-year warranty
Safety Conformance: IEC/EN 61010-1:2001, 1000V CAT III, 600V CAT IV
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- Measurement Type
- AC Voltage
- DC Voltage
- Resistance
- AC Current
- DC Current
- Frequency
- True RMS
- Yes
- Minimum AC Voltage Measurement
- 600 V
- Maximum AC Voltage Measurement
- 1000 V
- Minimum DC Voltage Measurement
- 600 V
- Maximum DC Voltage Measurement
- 1000 V
- Maximum AC Current Measurement
- 999.90 A
- Maximum DC Current Measurement
- 999.90 A
- Minimum Resistance Measurement
- 600 Ohm
- Maximum Resistance Measurement
- 60 Kilo Ohm
- Minimum Frequency Measurement
- 5 Hz
- Maximum Frequency Measurement
- 500 Hz
- Jaw Size
- 1.34"
- Application/Usage
- Electrical
- Battery Information
- Battery Size
- AA
- Battery Chemistry
- Alkaline
- Physical Characteristics
- Height
- 1.7"
- Width
- 3.5"
- Depth
- 10.9"
- Weight (Approximate)
- 12.35 oz
- Miscellaneous
- Package Contents
- 381 Remote Display True RMS AC/DC Clamp Meter with 18-inch iFlex flexible Current Probe
- Coated Instruction Card
- Safety Information Sheet
- Soft Carrying Case
- TL75 Test Leads
- 5 x AA Alkaline Batteries
- Certifications & Standards
Safety Compliance
- ANSI/ISA S82.02.01:2004
- CAN/CSA-C22.2 No. 61010-1-04
- IEC/EN 61010-1:2001 to 1000V CAT III, 600V CAT IV.
