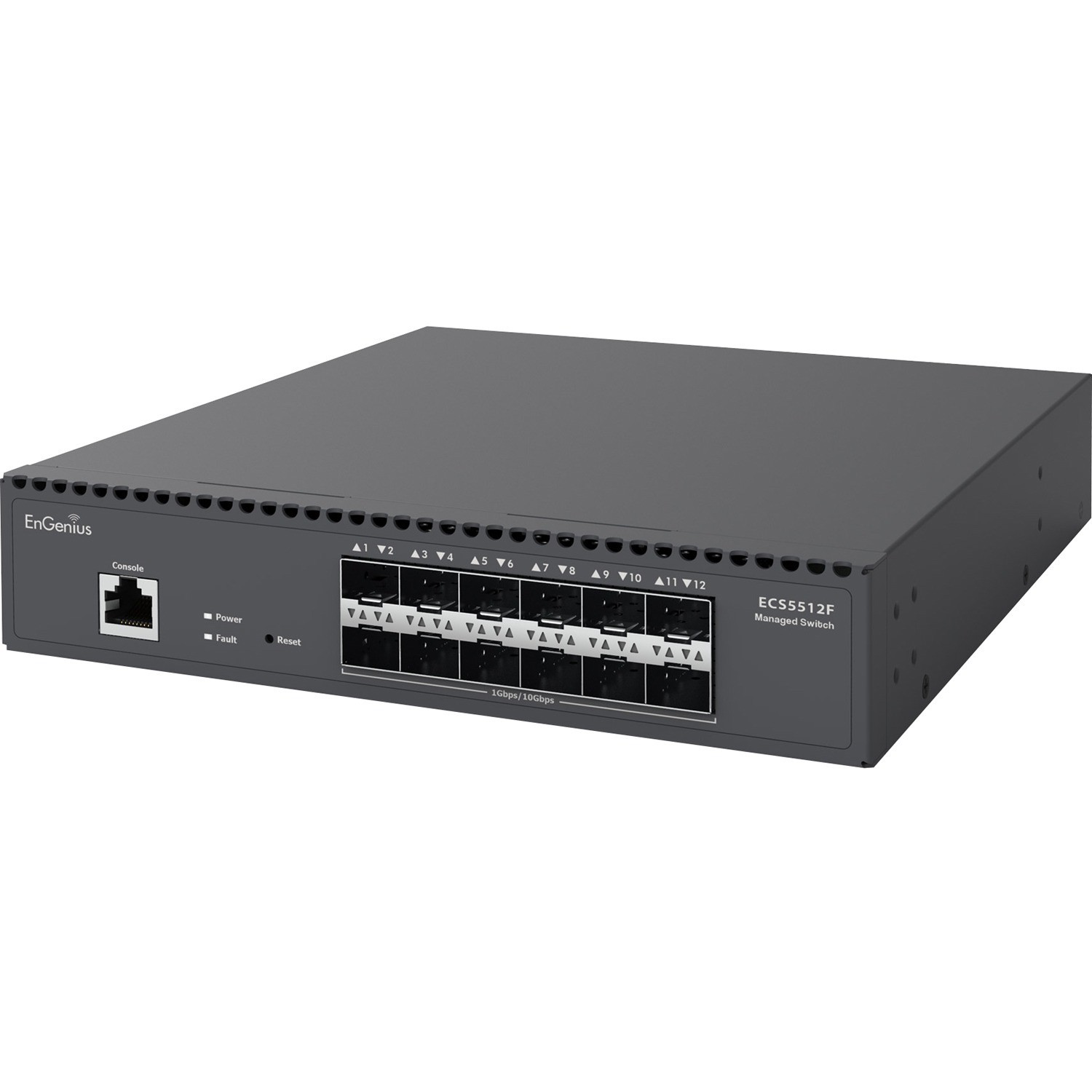

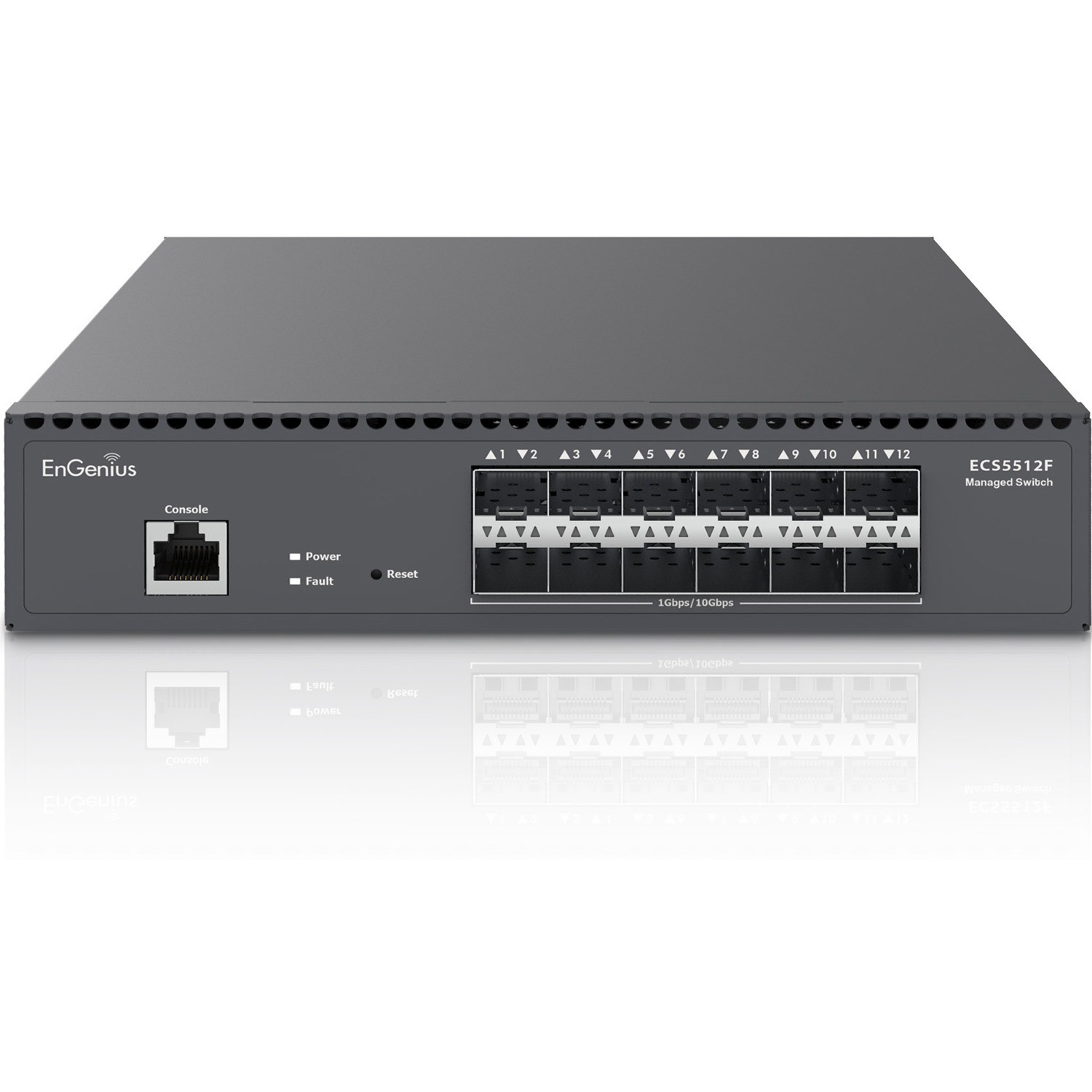

The EnGenius cloud-managed ECS5512F 12-port 10 Gigabit SFP+ half-rack aggregate fiber switch, expandable to two per rack, boosts traffic flow and network performance. Administrators can easily scale from 12 to 24 SFP+ ports on a single rack as network demands increase in large business, multi-dwelling unit, hospitality, and campus environments.
- (12) 10 Gigabit SPF+ Ports
- Full-Featured Layer 2+ Ethernet Switch
- 240 Gbps Switching Capacity
- Half Rack 1U (19") Mount Expandable to Two Switches per Rack
- Real-Time System Metrics, Deep-Dive Analytics and Remote Configurations
- Quick-Scan Device Register, Remote Monitoring and Troubleshooting
- Advanced View Displays Network Topology with Devices and Relationships
- Hybrid Switch Supports Multiple Management Options
- Security - Access Control List/Port Security; 802.1X & RADIUS Authentication
- IGMP & MLD snooping provides advanced multicast filtering & network efficiency
- 802.3ad Link Aggregation (LACP) Supports Traffic Load Balancing
- Spanning Tree (STP), Rapid Spanning Tree (RSTP) & Multiple Spanning Tree (MSTP)
- General Information
- Manufacturer
- EnGenius Technologies, Inc
- Manufacturer Website Address
- http://www.engeniustech.com
- Brand Name
- EnGenius
- Product Series
- ECS
- Packaged Quantity
- 1
- Product Type
- Ethernet Switch
- Warranty
- Limited Warranty
- 2 Year
- Interfaces/Ports
- Modular
- Yes
- Port/Expansion Slot Details
- 12 x 10 Gigabit Ethernet Expansion Slot
- Media & Performance
- Media Type Supported
- Optical Fiber
- Ethernet Technology
- 10 Gigabit Ethernet
- Network Technology
- 10GBase-X
- I/O Expansions
- Number of Total Expansion Slots
- 12
- Expansion Slot Type
- SFP+
- Number of SFP+ Slots
- 12
- Network & Communication
- Layer Supported
- 2
- Networking Standards
- IEEE 802.1x
- IEEE 802.3ad
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3bz
- IEEE 802.3x
- IEEE 802.1Q
- IEEE 802.1D
- IEEE 802.3az
- Management & Protocols
- Manageable
- Yes
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Frequency
- 50 Hz
- 60 Hz
- Power Source
- Power Supply
- Physical Characteristics
- Compatible Rack Unit
- 1U
- Form Factor
- Rack-mountable
- Height
- 1.7"
- Width
- 8.3"
- Depth
- 9.1"
- Miscellaneous
- Package Contents
- Cloud Managed 12-Port 10 Gigabit SFP+ Half-Rack Aggregate Fiber Switch
- 1 x Quick Installation Guide
- 1 x Power Cord
- 1 x RJ45 Console Cable
- 1 x Rack Mount Kit
- Application/Usage
- Business
