- General Information
- Manufacturer
- EnGenius Technologies, Inc
- Manufacturer Website Address
- http://www.engeniustech.com
- Brand Name
- EnGenius
- Packaged Quantity
- 1
- Product Type
- Wireless Access Point

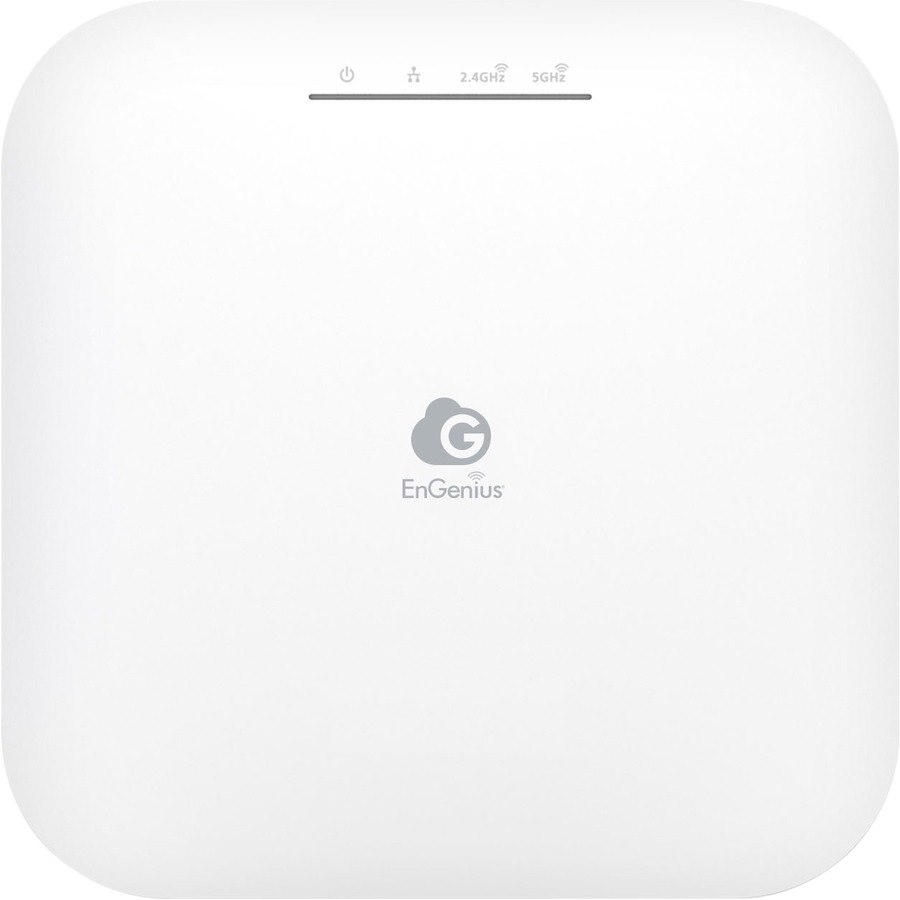

EnGenius Cloud Managed ECW230 Wi-Fi 6 (802.11ax) 4x4 Managed Indoor Wireless Access Point features 802.11ax technology, such as OFDMA, MU-MIMO, and spatial reuse, to expand the capabilities of Wi-Fi. The low-profile AP provides high-density support & maximum speeds of 1,148 Mbps (2.4 GHz frequency) and 2,400 Mbps (5 GHz frequency).
- Dual concurrent 802.11ax architecture & backward-compatible with 11ac/a/b/g/n client devices; 4x4 antenna
- Supports up to 2,400 Mbps in 5-GHz frequency band & 1,148 Mbps in 2.4-GHz frequency band
- 2.5 GbE realizes greater throughput and supports 802.3at & 48V PoE input for flexible installation over 100 meters (328 feet)
- Uplink and downlink of OFDMA improves transmission to APs and client devices
- Target wake time for power-saving of client & IoT devices
- Warranty
- Limited Warranty
- 2 Year
- Technical Information
- Wireless LAN Standard
- 802.11ax
- Frequency Band
- 2.40 GHz
- 5 GHz
- Total Number of Antennas
- 8
- Number of Internal Antennas
- 8
- Wireless Transmission Speed
- 3.46 Gbit/s
- MIMO Technology
- Yes
- Beamforming Technology
- Yes
- Interfaces/Ports
- Ethernet Technology
- 2.5 Gigabit Ethernet
- Number of Network (RJ-45) Ports
- 1
- PoE PD Port
- Yes
- Physical Characteristics
- Form Factor
- Ceiling Mountable
- Wall Mountable
- Height
- 1.3"
- Width
- 8.3"
- Depth
- 8.3"
- Weight (Approximate)
- 1.31 lb
- Miscellaneous
- Package Contents
- Cloud Managed Wi-Fi 6 4×4 Indoor Wireless Access Point
- 1 x Ceiling Mount Base (9/16" Trail)
- 1 x Ceiling Mount Base (15/16" Trail)
- 1 x Ceiling and Wall Mount Screw Kit
- 1 x Quick Installation Guide
- Country of Origin
- Taiwan
