- General Information
- Manufacturer
- Altronix Corporation
- Manufacturer Website Address
- http://www.altronix.com
- Brand Name
- Altronix
- Product Type
- Power Integration Kit

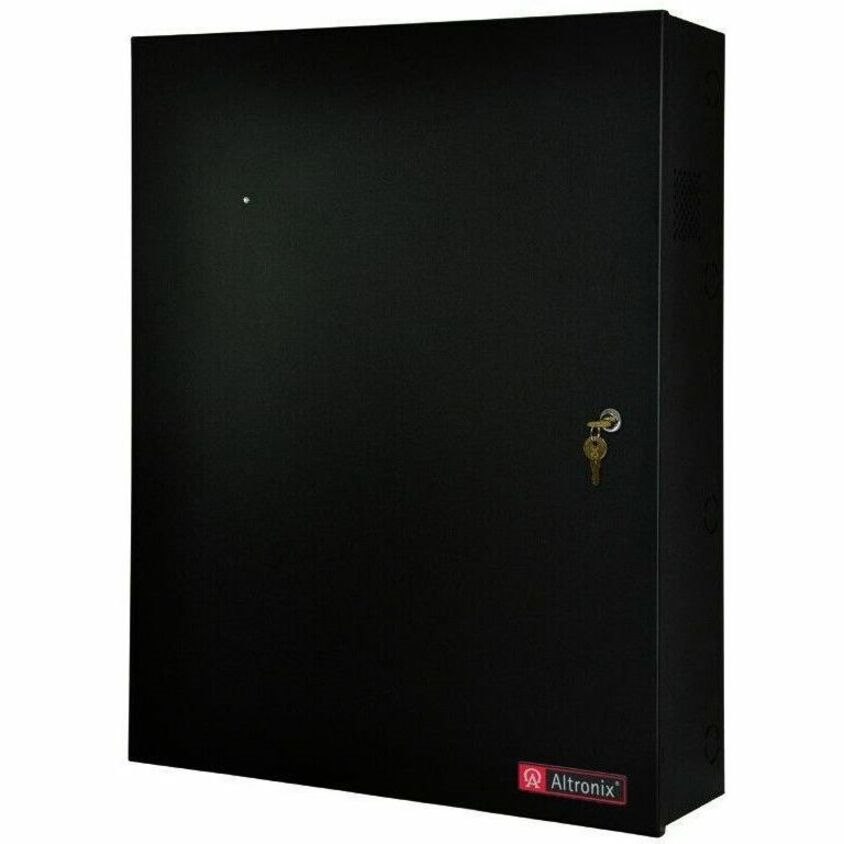

Altronix T2MK38D kit consists of Trove2 enclosure and TM2 Altronix & Mercury backplane with 12VDC or 24VDC (factory set at 24VDC) @ 6A power supply/charger, 12VDC voltage regulator, eight (8) PTC protected output dual voltage power distribution module and eight (8) PTC protected output access control module. This kit also accommodates various combinations of Mercury* boards for up to eight (8) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
*Also compatible with these authentic Mercury partners:
AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, Lenel/S2, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic Video Insight, Quintron, RS2, Schneider Electric, Vanderbilt
- Warranty
- Limited Warranty
- Lifetime
- Technical Information
- Recommended Usage
- Door
- Battery Information
- Battery Included
- No
- Number of Batteries Supported
- 4
- Environmental Conditions
- Maximum Operating Temperature
- 120.2°F (49°C)
- Physical Characteristics
- Product Material
- Galvanized Steel
- Material Details
galvanized steel - backplane
- Dimensions
Dimensions:
- 21.5"Wx27.25"Hx6.5"D(546.1 mm W x 692.15 mm H x 165.1 mm D).
- Weight (Approximate)
Product Weight:
- 39.6 Lbs.(18 kg).
- Miscellaneous
- Package Contents
- 1 x Access and Power Integration Enclosure, Requires compatible Trove2 Series Backplane
- 1 x Trove2 Backplane for Altronix & Mercury
- 1 x Power Supply Charger, Single Class 2 Output, 12/24VDC @ 6A, 115VAC, Board
- 1 x Access Power Controller, 8 PTC Class 2 Relay Outputs, FAI, Board
- 1 x Voltage Regulator. 24VDC input into 5VDC or 12VDC output
- 1 x Dual Input Power Distribution Module, 8 PTC Outputs
- Compatibility
Mercury Security:
- LP2500 - Controllers
- MUX8 - Controllers
- LP1502 - Controllers
- LP4502 - Controllers
- MR52 - Controllers
- MR16IN - Controllers
- MR16OUT - Controllers
- LP1501 - Controllers
- MR62e
- MR50
- Environmentally Friendly
- Yes
