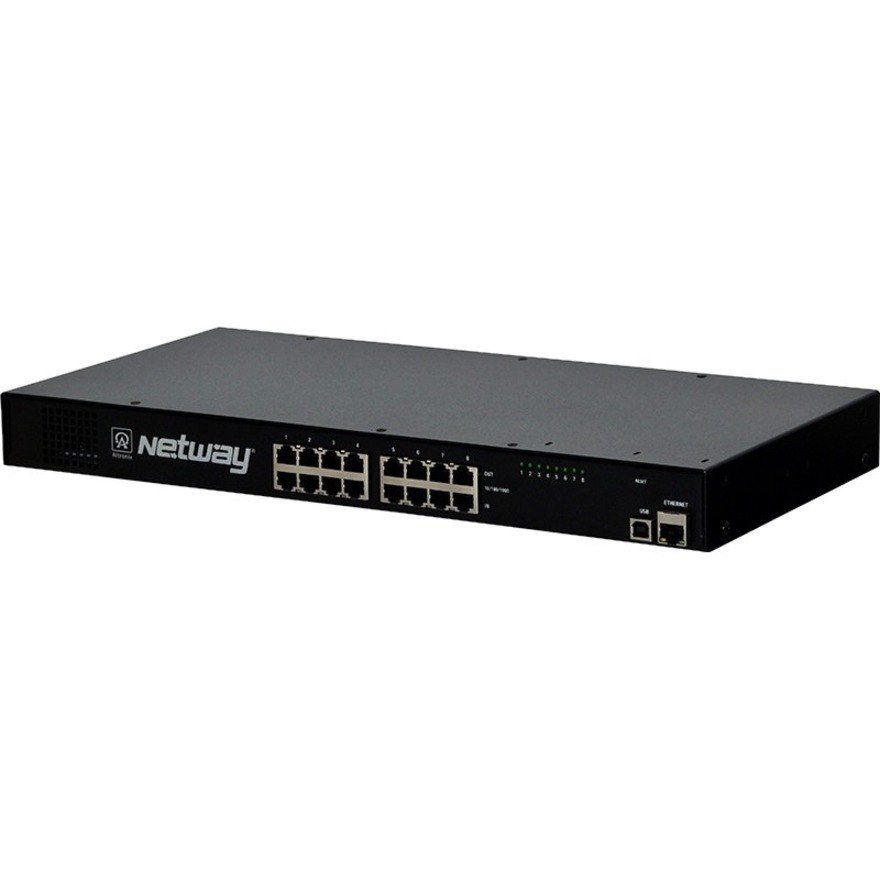

Altronix NetWay8BT is a 8-port networked Managed Midspan in a 1U rack enclosure. It provides PoE/PoE+/Hi PoE up to 90W (802.3bt compliant) power per port, 480W total max. and passes data at 10/100/1000 Mbps at distances up to 100m. Features also include an integral battery charger for applications requiring backup and embed- ded LINQ™ Technology to monitor, control, and report power and diagnostics from anywhere over the network.
- General Information
- Manufacturer
- Altronix Corporation
- Manufacturer Website Address
- http://www.altronix.com
- Brand Name
- Altronix
- Product Type
- PoE Injector
- Warranty
- Limited Warranty
- Lifetime
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Maximum Input Current
- 5.50 A
- Maximum Output Power
- 480 W
- Interfaces/Ports
- Input Ports
- 8 x PoE
- Output Ports
- 8 x PoE
- Physical Characteristics
- Form Factor
- Rack Mountable
- Rack Height
- 1U
- Height
- 8.5"
- Width
- 1.6"
- Length
- 19.1"
- Weight (Approximate)
- 6.40 lb
- Miscellaneous
- Certifications & Standards
- IEEE 802.3af (15W)
- IEEE 802.3at (30W)
- IEEE802.3bt
- CE
- UL60950-1
- UL294
- Country of Origin
- United States
