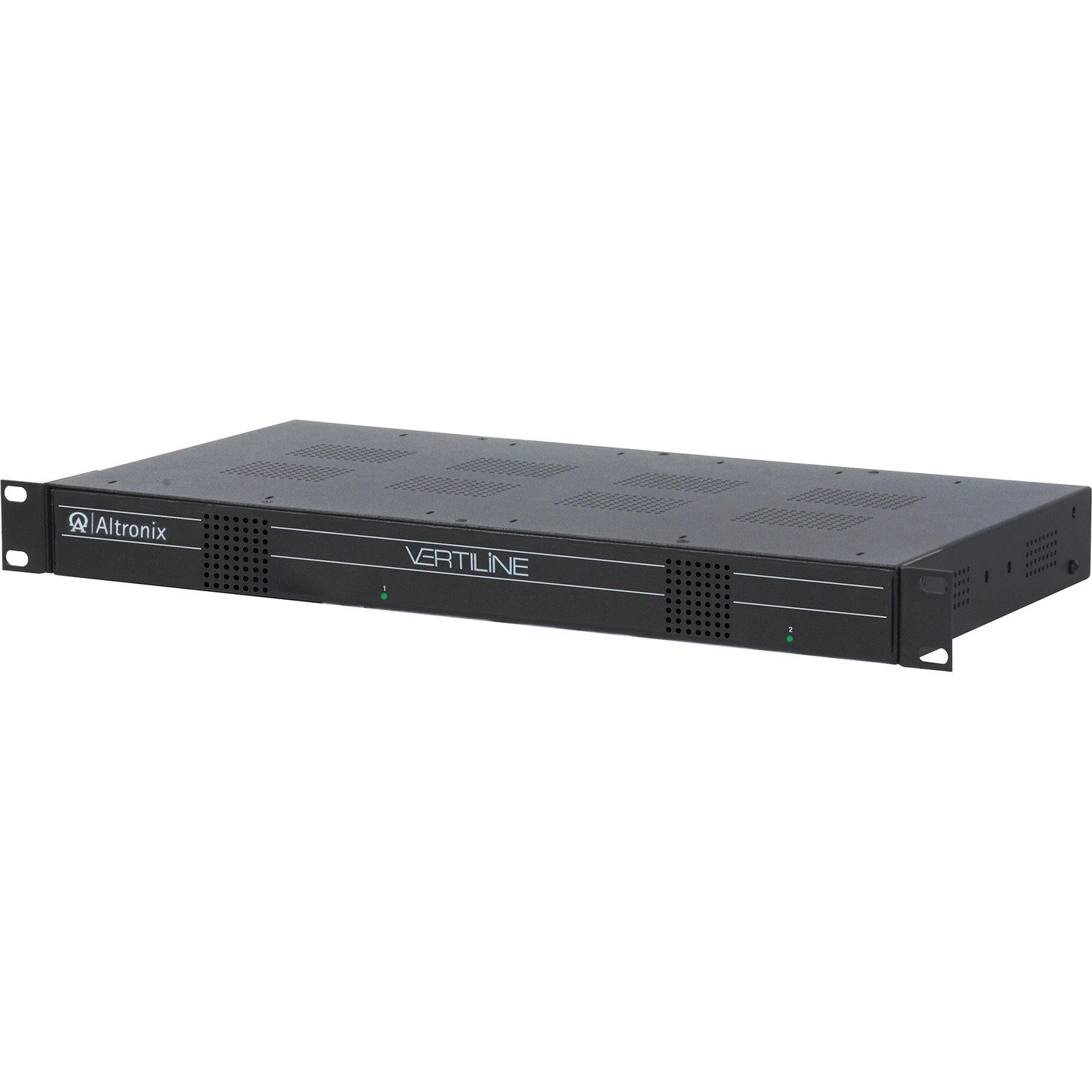

Altronix Vertiline563 is a EIA 19" 1U rack mountable dual independent power supply with optional battery backup that provides 56VDC. It is intended primarily to be used in conjunction with respective Altronix current and future products that requires 56VDC input such as: eBridge4PCRX, eBridge16PCRX & eBridge1PCRX multiport & single port IP/PoE over coax adapters. However, it can also be employed wherever 56VDC level power sources are needed. There are applications, which may require delivering power in a range of 48VDC to 57VDC over CAT5 cable for distances up to 100m. For these applications, transmission at the higher voltage is more efficient, as it reduces cable losses when compared to the lower voltage.
- General Information
- Manufacturer
- Altronix Corporation
- Manufacturer Website Address
- http://www.altronix.com
- Brand Name
- Altronix
- Product Line
- VERTILINE
- Packaged Quantity
- 1
- Product Type
- Proprietary Power Supply
- Warranty
- Limited Warranty
- Lifetime
- Power Description
- Input Voltage
- 120 V AC
- Output Voltage
- 56 V DC
- Output Voltage Detail
- 56 V DC @ 3 A
- Output Current
- 3 A
- Physical Characteristics
- Form Factor
- Rack-mountable
- Shelf Mount
- Height
- 1.6"
- Width
- 19.1"
- Depth
- 8.5"
- Weight (Approximate)
- 8.30 lb
- Miscellaneous
- Country of Origin
- United States
- NDAA Compliant
- Yes
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
