- General Information
- Manufacturer
- Advantech Co., Ltd
- Manufacturer Website Address
- http://www.advantech.com
- Brand Name
- B+B SmartWorx
- Product Line
- MeanWell
- Product Series
- SDR-480
- Packaged Quantity
- 8
- Product Type
- Power Supply

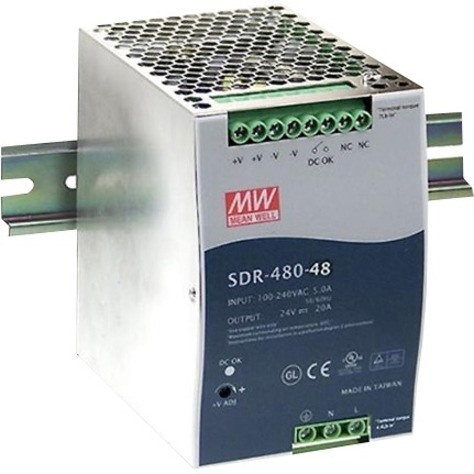

Model SDR-480-48 power supply is enclose in a DIN rail mountable case with touch-guard screw terminals and features universal input, single output, power-on LED display, built-in active PFC function, DC OK relay contact and peak load capability. The power supply protects against short circuit, overvoltage and overload by current limiting (hiccup after 3s).
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- Efficiency
- 94%
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- 370 V DC
- Output Voltage
- 48 V DC
- Output Current
- 10 A
- Output Power
- 480 W
- Physical Characteristics
- Form Factor
- DIN Rail
- Height
- 4.9"
- Width
- 3.4"
- Depth
- 5.1"
- Miscellaneous
- Environmentally Friendly
- Yes
- Environmental Compliance
- Taiwan Restriction of Hazardous Substances (Taiwan RoHS)
